How old can the standing rigging be?
Short answer
Age is the easy number, condition is the real question, and between the two sits the word that decides claims: fatigue. Most of what an owner can do about it is a good look at the ends and a folder of dated paper.
Ten years is the figure everyone quotes. It appears in charter fleet rules, in yard advice and in some policy schedules, usually as a point at which standing rigging should be replaced or at least inspected and reported on. Other wordings say nothing about age at all and look only at condition. Since the two approaches are genuinely different, the schedule and the conditions are worth reading before the renewal rather than after a dismasting, and a rig older than that rule of thumb is a reason to ask the question in writing, not a reason to keep quiet.
The real dividing line is the cause. Wear and tear is excluded in marine hull wordings generally, and fatigue in a wire, a terminal or a rod is wear and tear however dramatic the failure looks. A mast that goes over the side in a squall, in a collision or after a grounding is a sudden event with a cause anyone can describe. A mast that comes down on a quiet afternoon because a shroud let go at the swage is a different conversation entirely, and it is the surveyor's report that decides which of the two it was.
Where rigs actually fail is worth knowing, because it is almost never the middle of the wire and almost never the spar. It is the ends and the joints: swage and roller swage terminals where water sits and the wire corrodes under the sleeve, rigging screws with a started thread, toggles and clevis pins working out of line, spreader end fittings, and the chainplate landing in the hull, often hidden under a headlining and a layer of sealant. Rod rigging adds fatigue at the head of the rod, which cannot be seen from the deck at all. That is also where the paperwork pays: a dated rig report, invoices for replaced wire and terminals, photographs of chainplates once they have been exposed. Those documents turn an argument about the age of a boat into a question about a component that was inspected and found sound.
Rigging inspection: what a rigger checks from deck to masthead

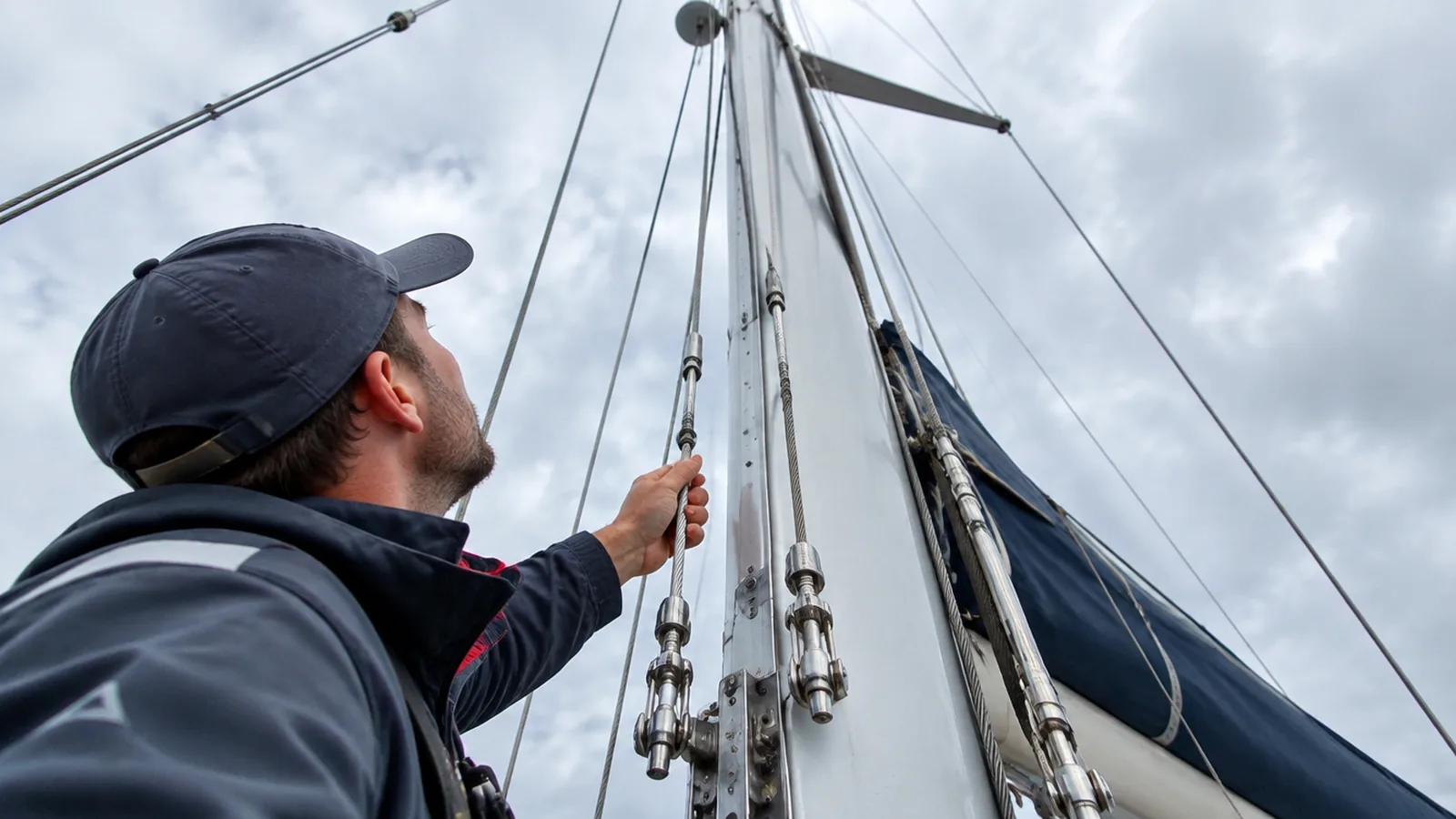

A proper rigging inspection works through the rig from the bottom up and from the top down. At deck level the rigger looks at chainplates, rigging screws, toggles, clevis pins and split pins, then at the mast step or the deck collar. Aloft, it is the masthead fittings, sheaves, spreader roots and tips, tangs and the terminals at the top of each wire. Many problems show up close up and nowhere else: a hairline crack in a swage terminal, a broken strand at the point where the wire enters the fitting, corrosion under a tape wrap.
Ask for the result in writing, with the date, the boat's name and a list of what was checked and what was found. A short report with photographs is worth more than a verbal all clear, because it shows later that the rig was looked at and by whom. The rig check form on this site can be printed and filled in during the inspection, so that nothing is forgotten and the result goes straight into the boat's file.
Standing and running rigging: two different jobs
Standing rigging is the part that holds the mast up and stays put: shrouds, forestay, backstay and their fittings. It is loaded all the time, even at the berth, and it ages largely out of sight in the terminals and the chainplates. Running rigging is everything that moves: halyards, sheets, control lines, blocks, clutches and winches. It wears where you can see it, through chafe, sunlight and loads on the cover of the rope.
That difference shapes how each is looked after. Running rigging is replaced when it looks tired, with a glance at stiff or faded rope, worn covers at clutches and sheaves, and blocks that no longer turn freely. Standing rigging gives far fewer warnings, so it is managed by age, by inspection and by replacing parts before they show damage. The two together decide whether the rig can be trusted, but it is the standing rigging that brings the mast down when it fails.
Replacing shrouds and stays: one wire or the whole set?
When one shroud or stay is found to be damaged, the question is whether to replace that wire alone or the whole set. Many riggers advise the full set if the wires are the same age, because they have carried similar loads for the same number of seasons and the next one may not be far behind. Replacing a single wire makes sense where there is a clear external cause, for example a collision or a fitting that was damaged in the yard, and the rest of the rig has been inspected and found sound.
Whatever you decide, keep the invoices, the specification of the new wire and terminals and a note of which parts were renewed. Photographs of the chainplates if the lining has been opened are worth taking at the same time. That record answers the age question for years to come, because it replaces the build year of the boat with the date on which a particular component was fitted.
Rig check before the season: what an owner can do
A good deal can be checked from deck with a pair of binoculars and a torch. Look for rust weeping from terminals, bent or cracked fittings, missing split pins and rigging screws without locking. Run a cloth along each wire as far as you can reach: a single broken strand catches the fabric. Check that the mast is straight when sighted from below, and that the shrouds feel evenly tensioned on both sides when the boat is upright.
Going aloft in a bosun's chair, with a second person on a separate halyard, lets you see the masthead, the spreaders and the upper terminals. If anything looks doubtful, have a rigger take a closer look before the boat goes out in strong winds. The page on a broken roller furler covers the forestay and furling gear, which often show their age at the same time.
Worth remembering
Ten years
is the figure people quote
The terminals
are where it actually lets go
Age is an argument and a dated rig report is evidence. Only one of the two is any use once the mast is alongside in the water.
Questions
What owners ask us about this
Is there a fixed age limit for standing rigging?
It depends entirely on the wording. Some schedules name an age at which an inspection report or replacement is expected, others look only at condition and say nothing about years. Read the schedule, and if your rig is older than the figure quoted there, raise it before the season rather than after an incident.
What decides whether a dismasting is a claim at all?
The cause, not the age. A sudden external event such as a squall, a collision or a grounding is one thing; fatigue in a terminal after twenty seasons is wear and tear, and wear and tear sits outside hull wordings as a rule.
Where does standing rigging usually let go?
At the ends and the joints rather than in the wire: swage terminals, rigging screws, toggles and clevis pins, spreader fittings and the chainplate landing below deck. With rod rigging, the head of the rod is the classic place, and it gives no warning from outside.
How do I show that a failure was not fatigue?
With paper that predates the loss: a dated report from a rigger, invoices for wire and terminals that were replaced, and photographs of the chainplates with the lining off. Evidence that a part was checked and sound shifts the discussion away from the boat's year of build.
Should running rigging be replaced on a fixed schedule?
Usually not. Halyards, sheets and control lines are replaced when they show wear: stiff or faded rope, damaged covers, chafe at clutches and sheaves. Inspecting them at the start of each season is the practical routine.
Can I do a rigging inspection myself?
You can do a useful check from deck and aloft with binoculars, a torch and a bosun's chair. A rigger's written report carries more weight later, especially on an older rig, so many owners combine both.
